Intelligent X-ray sensors
We design, manufacture and provide technical support for X-ray sensor solutions — TDI/2D and line-scan sensors for applications such as security scanning, industrial measurement and food inspection — engineered, built and tested in the UK.
Manufacture
sensor engineering
software design in-house
technical field support
14001
27001
Multiple sectors - engineered for each application

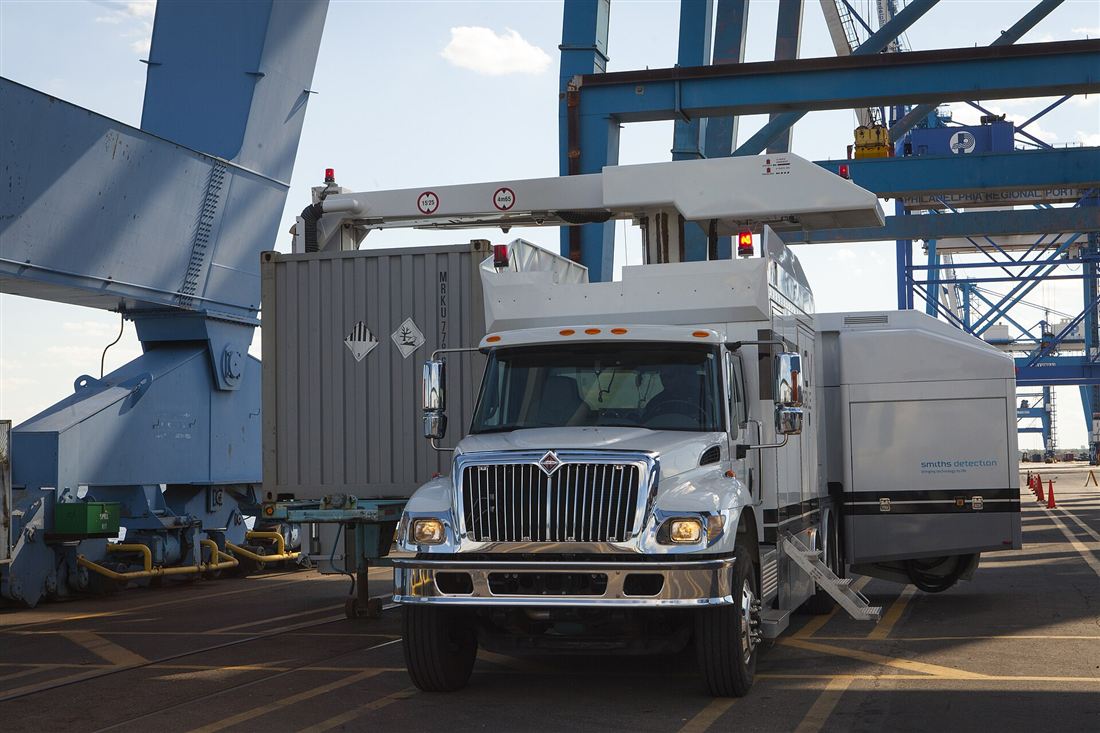

Customs & Borders security
Detection hardware for vehicle, truck/container, rail and cargo scanning at ports, borders and customs checkpoints.

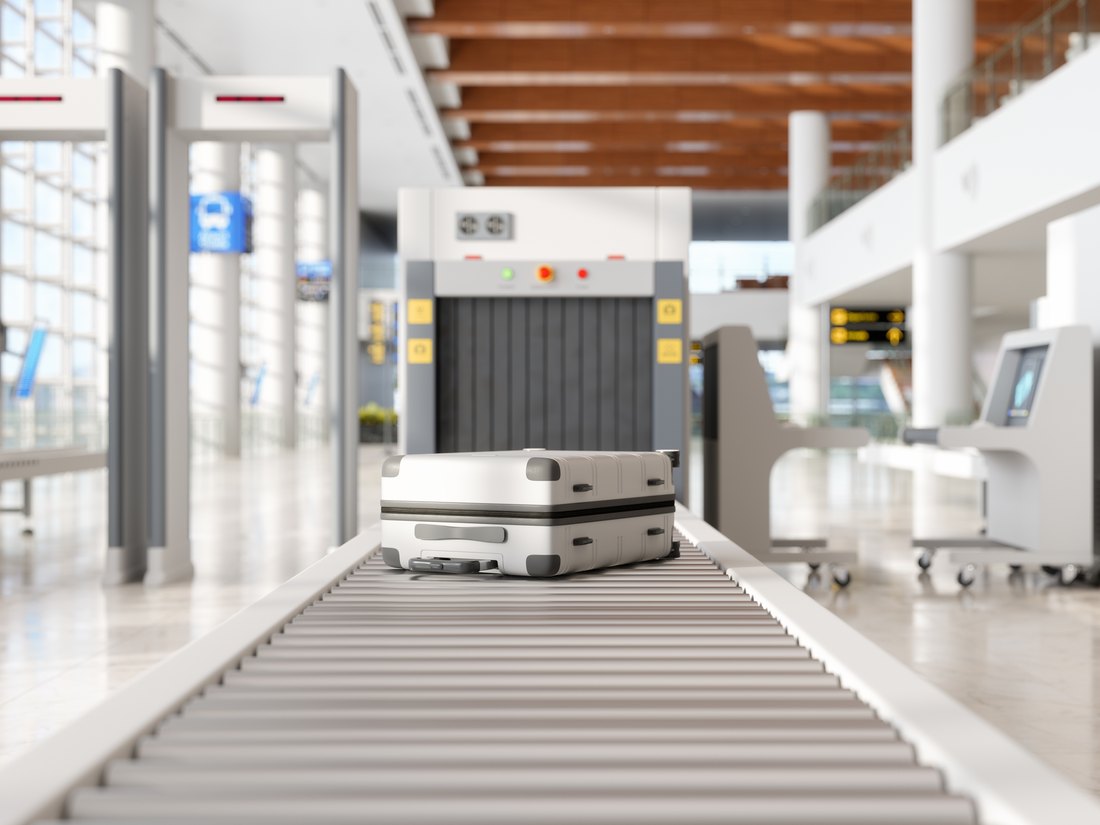

Aviation security
Detection hardware for checkpoint, hold baggage and parcel screening.

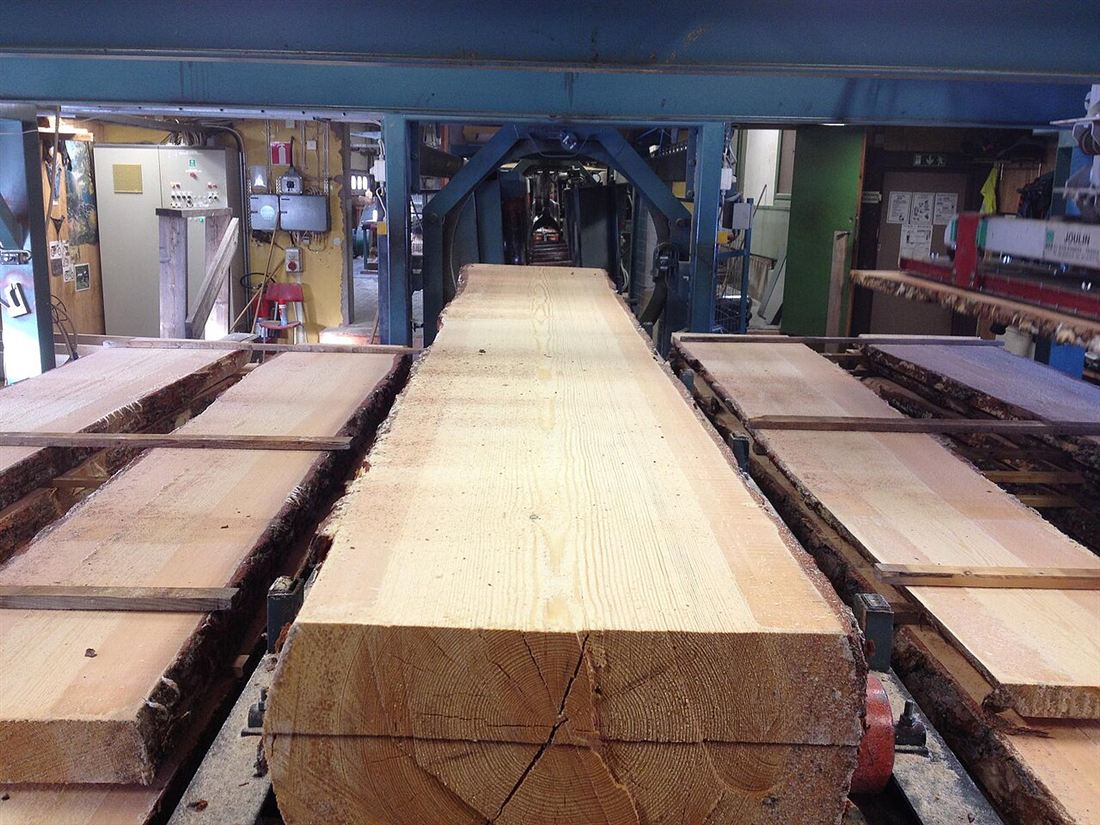

Industrial inspection & measurement
Detectors for the sorting and grading systems that handle wood, waste and recycling.

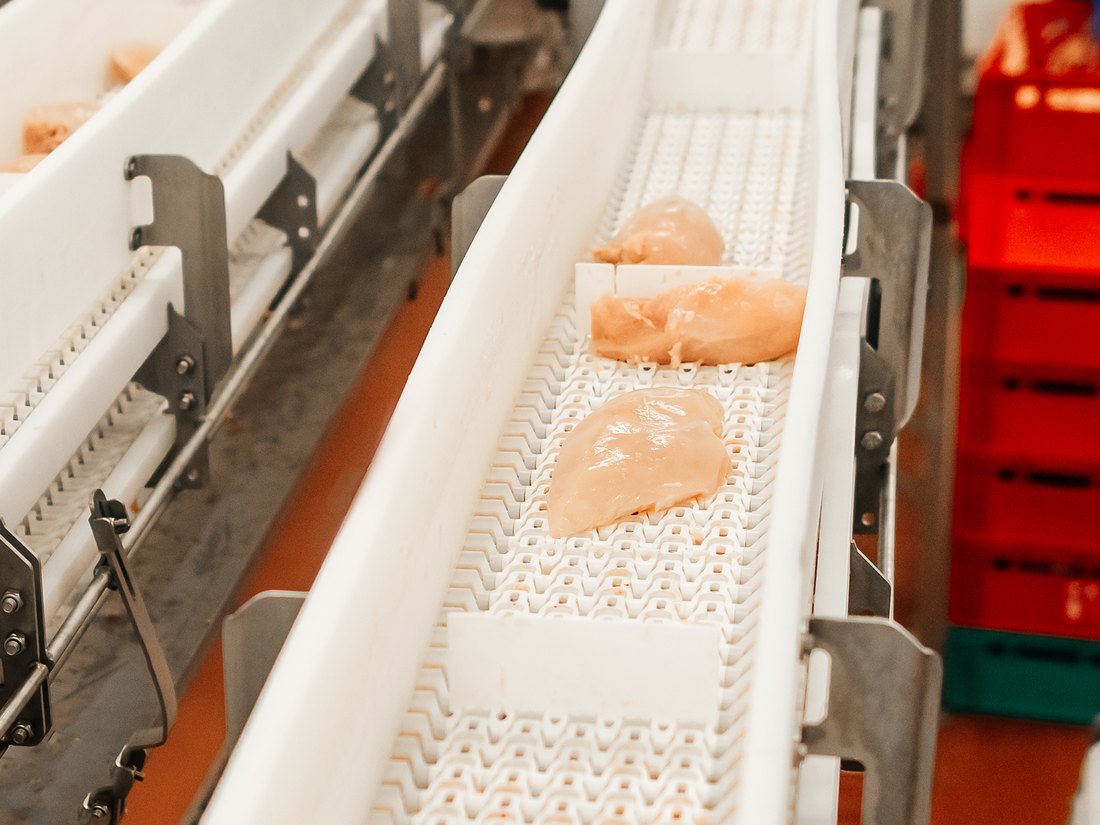

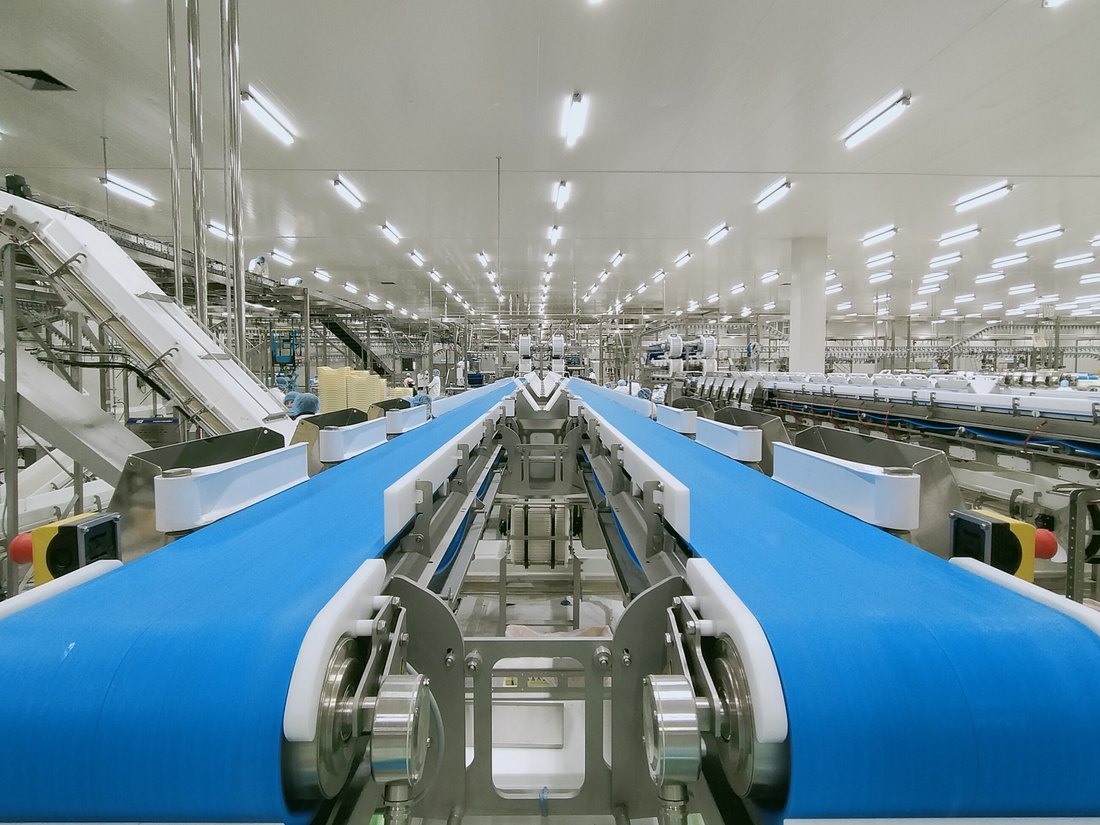

Food inspection
Foreign-body and contaminant — sensors designed and built for throughput, wash-down environments and long duty cycles.
Electronics
Standard and custom solutions — designed and scaled to fit your requirements.

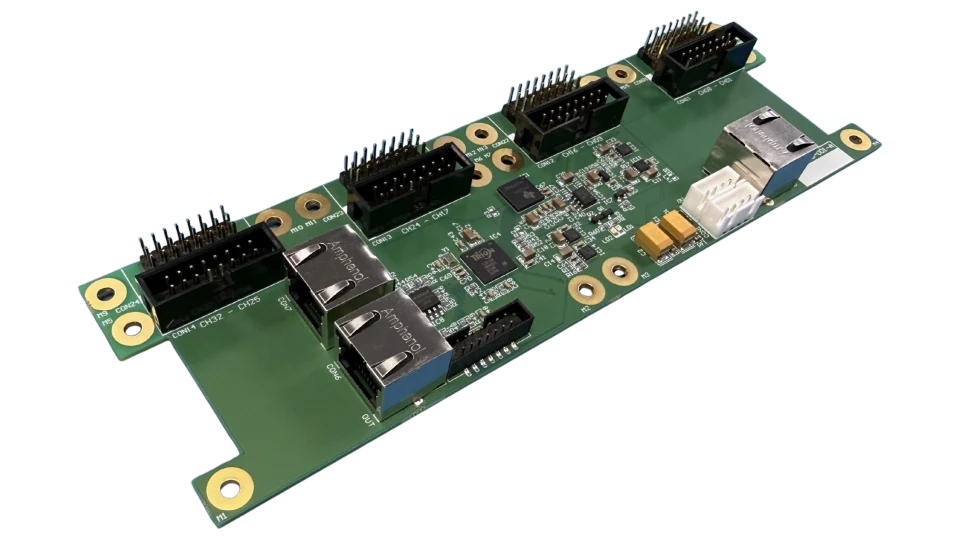

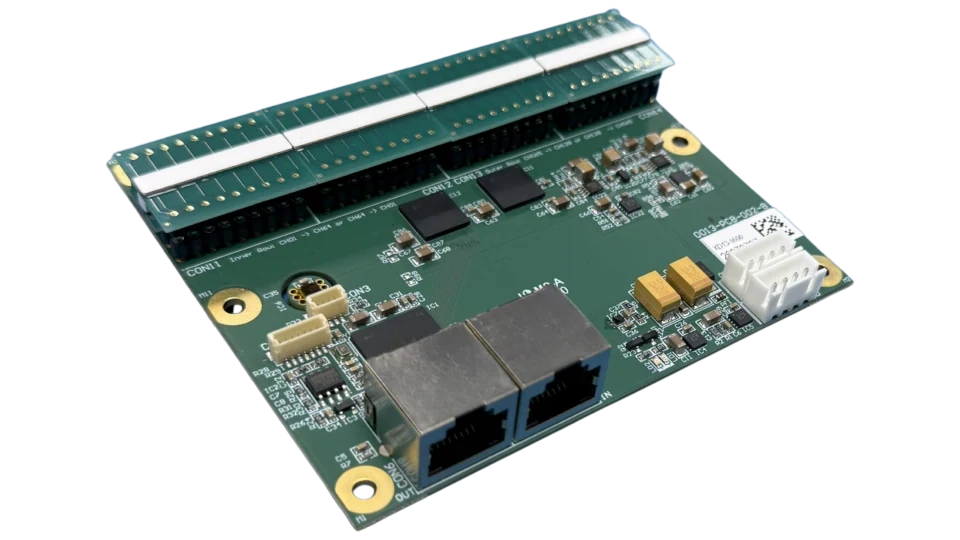

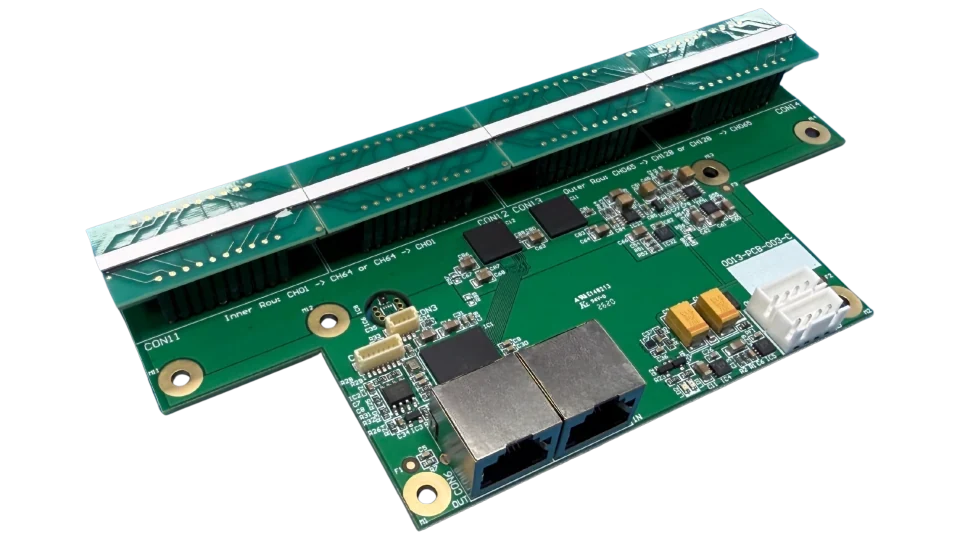

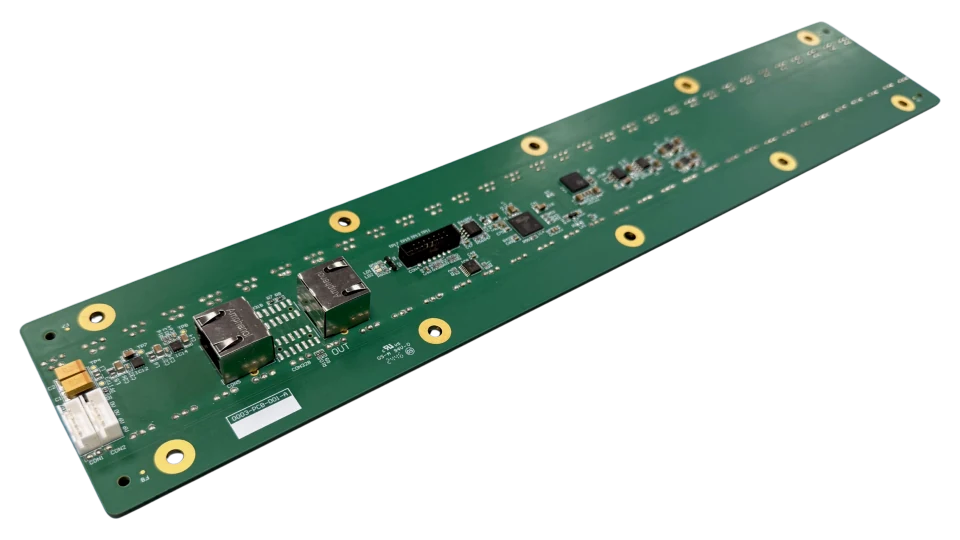

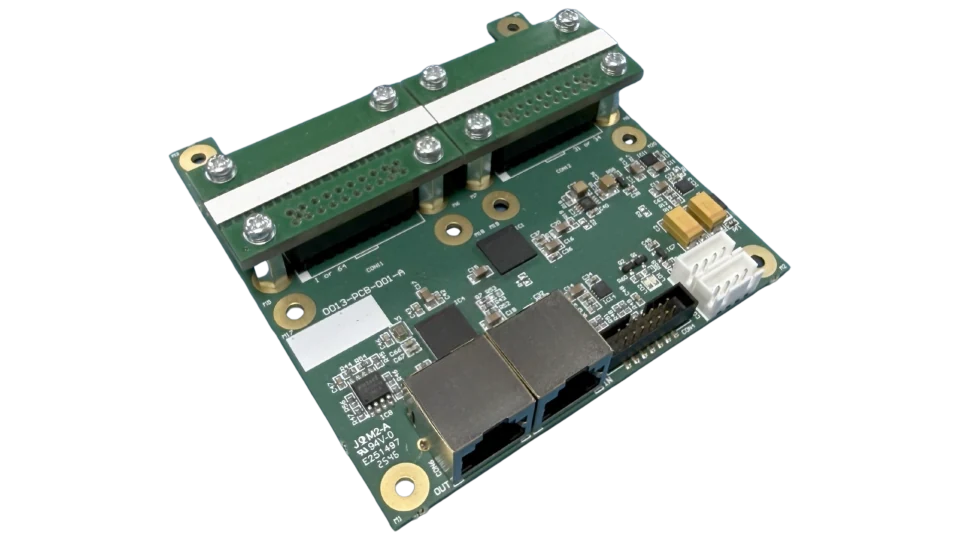

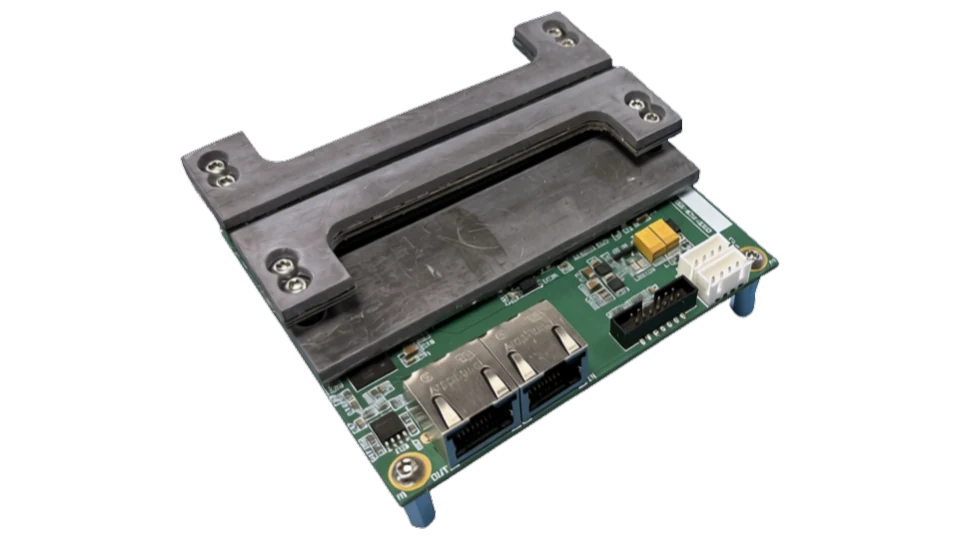

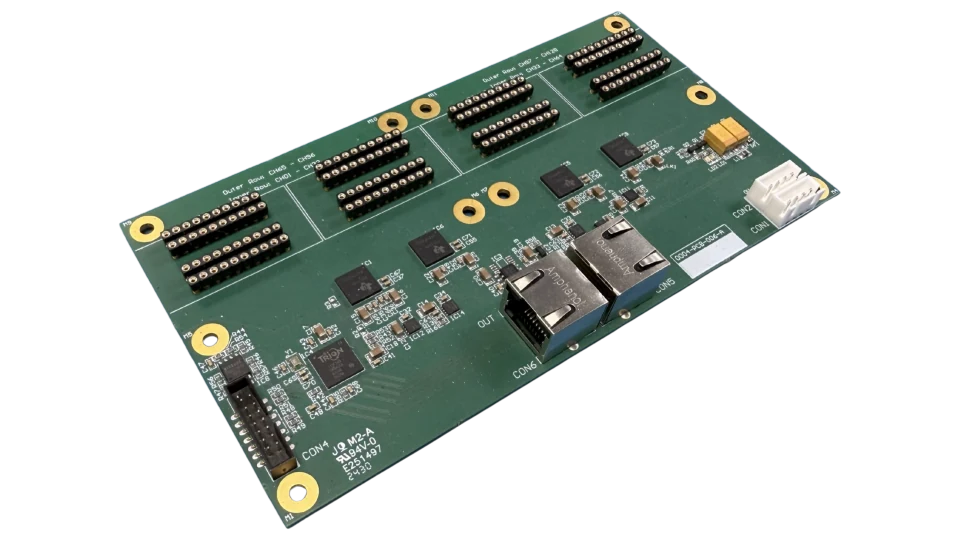

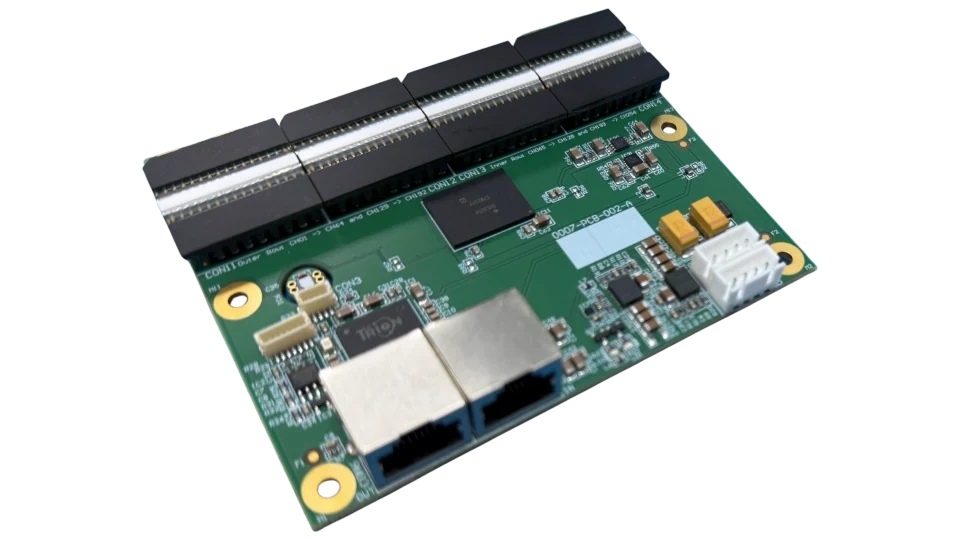

Product BrochureDetector board
Digitises the sensor output with wide dynamic range and high SNR. Temperature and humidity sensing are built in as standard.
- Front end20/24-bit fully digital
- Channels/board32 – 2048
- Energy modesSingle or dual energy
- Boards per control zoneUp to 62
- Photodiode pitch0.4 / 0.8 / 1.2 / 1.6 / 2.5 / 6.0 or custom
- Scintillator materialsCsI, Gadox, GOS, CdWO4 / CWO, ZnSe, Silicon — other options are available

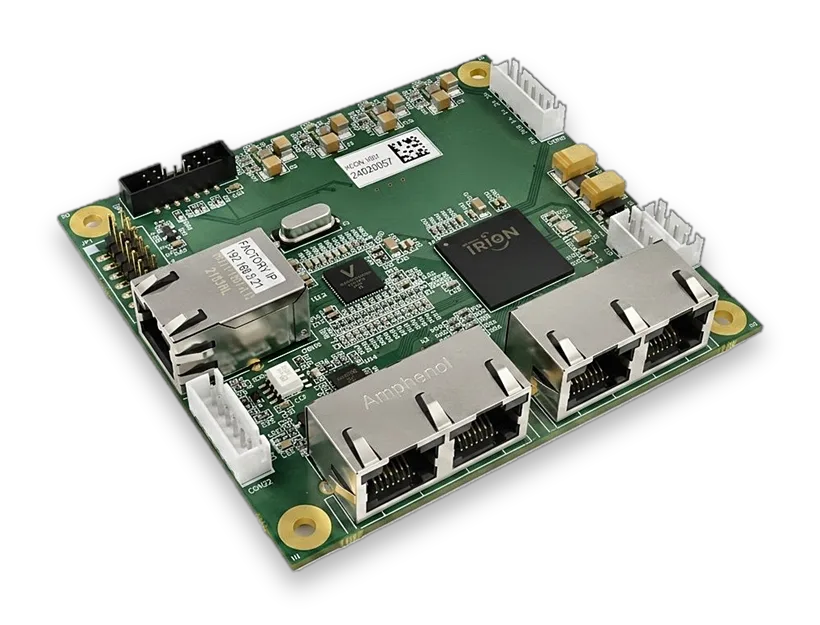

Control board
Collects data from detector boards and transmits to computer.
- Detector arrays2 or more
- Host interfaceGigabit Ethernet
- TriggerOptically isolated
- FirmwareSelf-update, dual boot
- I/O extrasGPIO, packet re-transmit

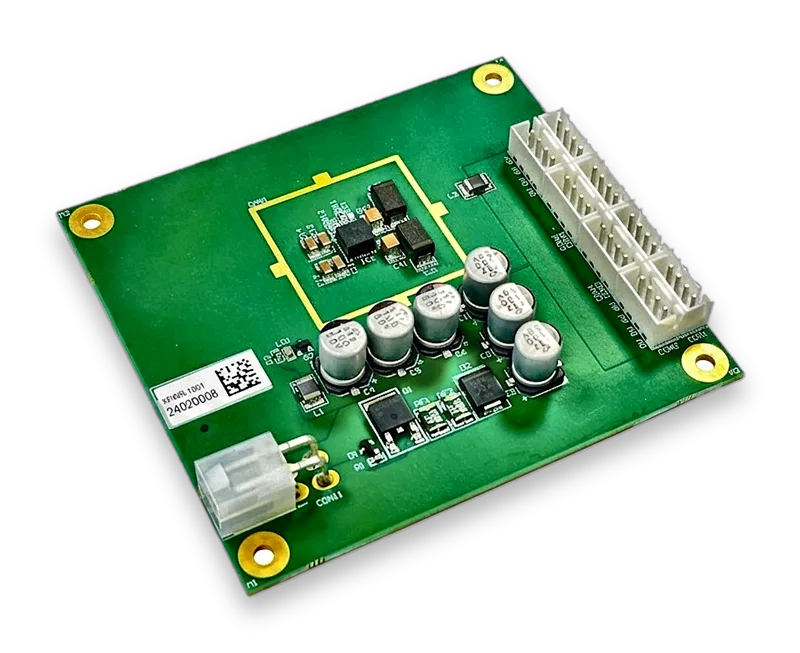

Power board
Conditions input power with a stackable, small-footprint design and a full set of line-protection features.
- Input12 V / 24 V nominal
(11 – 25 V DC) - Max input current6 A
- Output6 V @ 6 A, 8 feeds
- ProtectionReverse polarity, OCP, short circuit
- ThermalShutdown protection
Intelligence built in

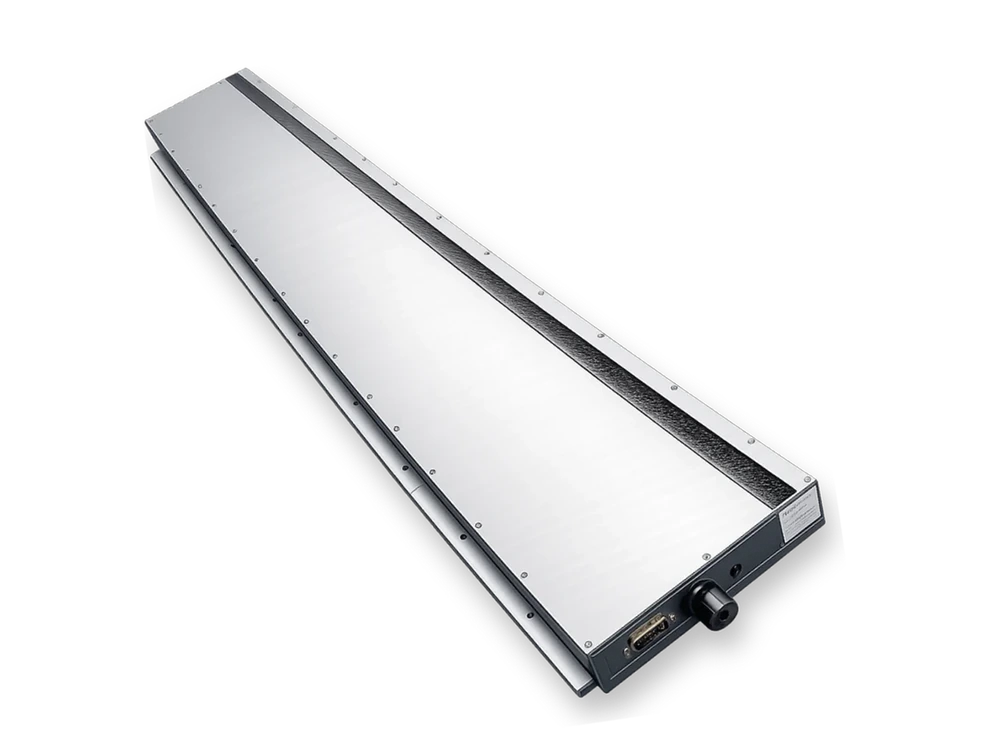

X-ray Inspection Systems (XIS)

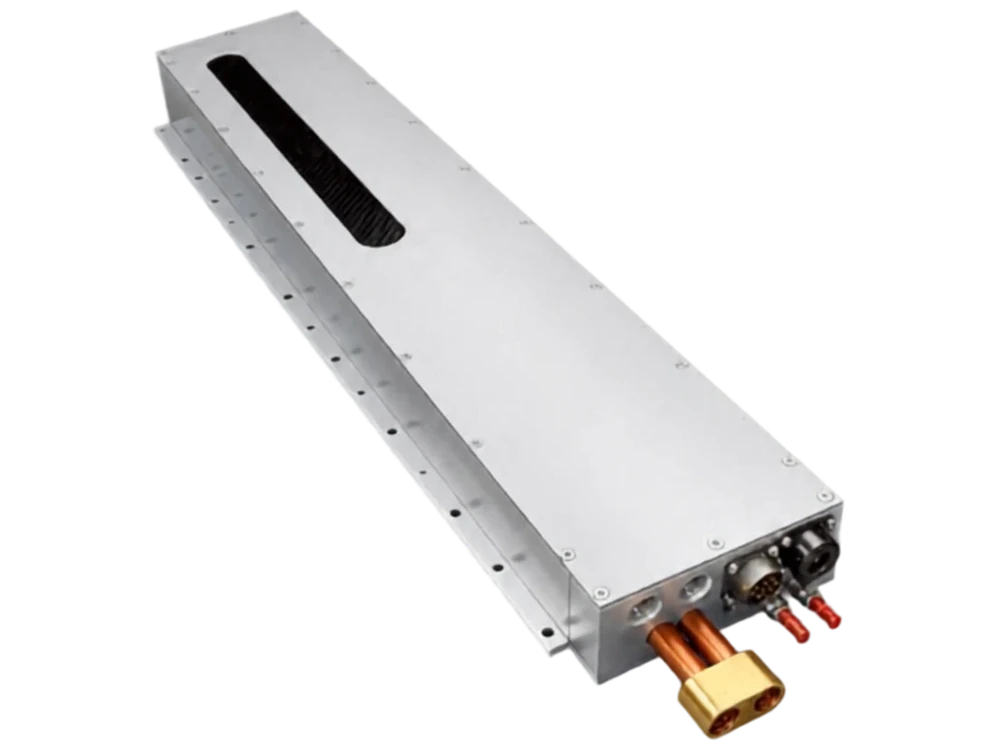

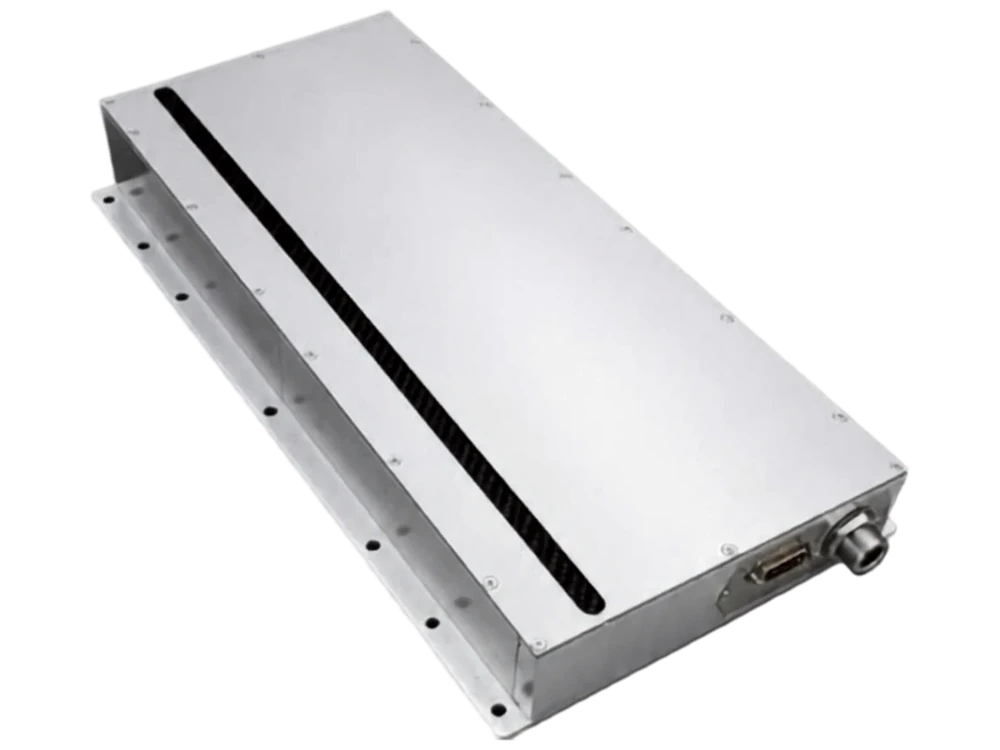

Assembled line-scan detectors — built to your requirements.
Product Brochure

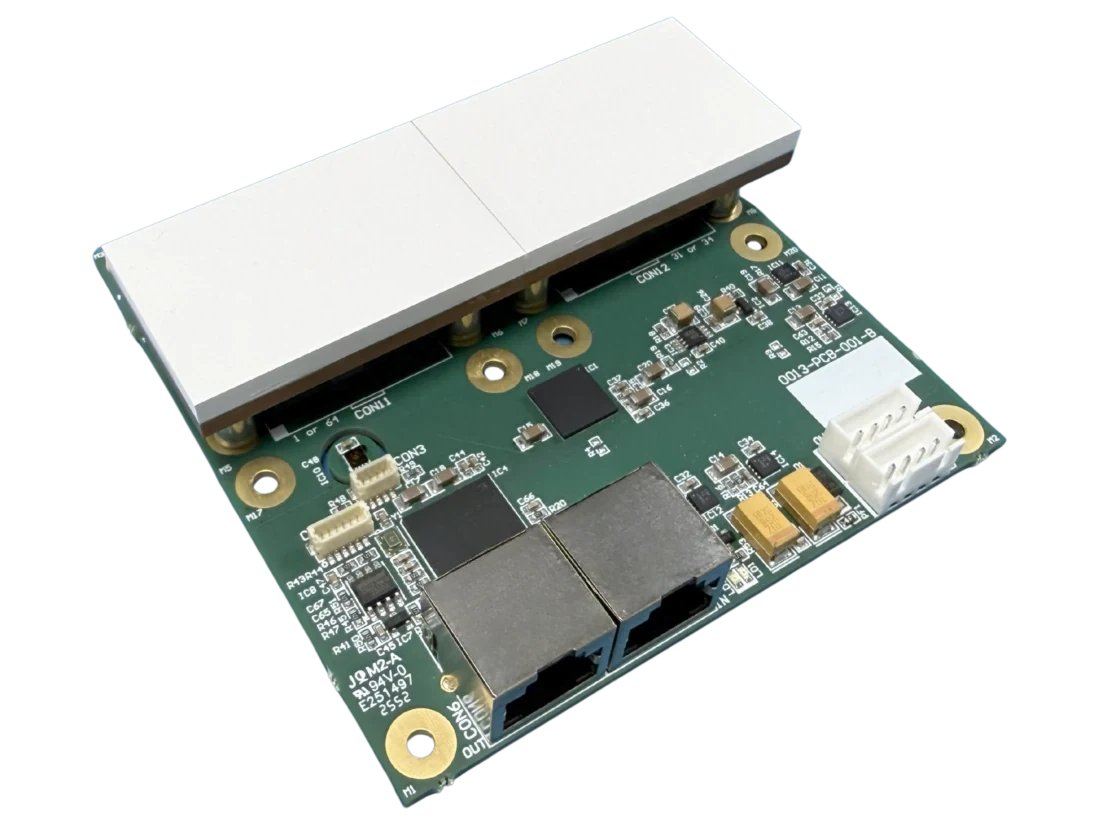

TDI & 2D - more stages, clearer image
Electronics and sensor architecture. 2, 4, 6, 8 or more stages of integration in single or dual-energy configurations to build signal and improve contrast.
Sensor & detector board specification
Engineered in the UK

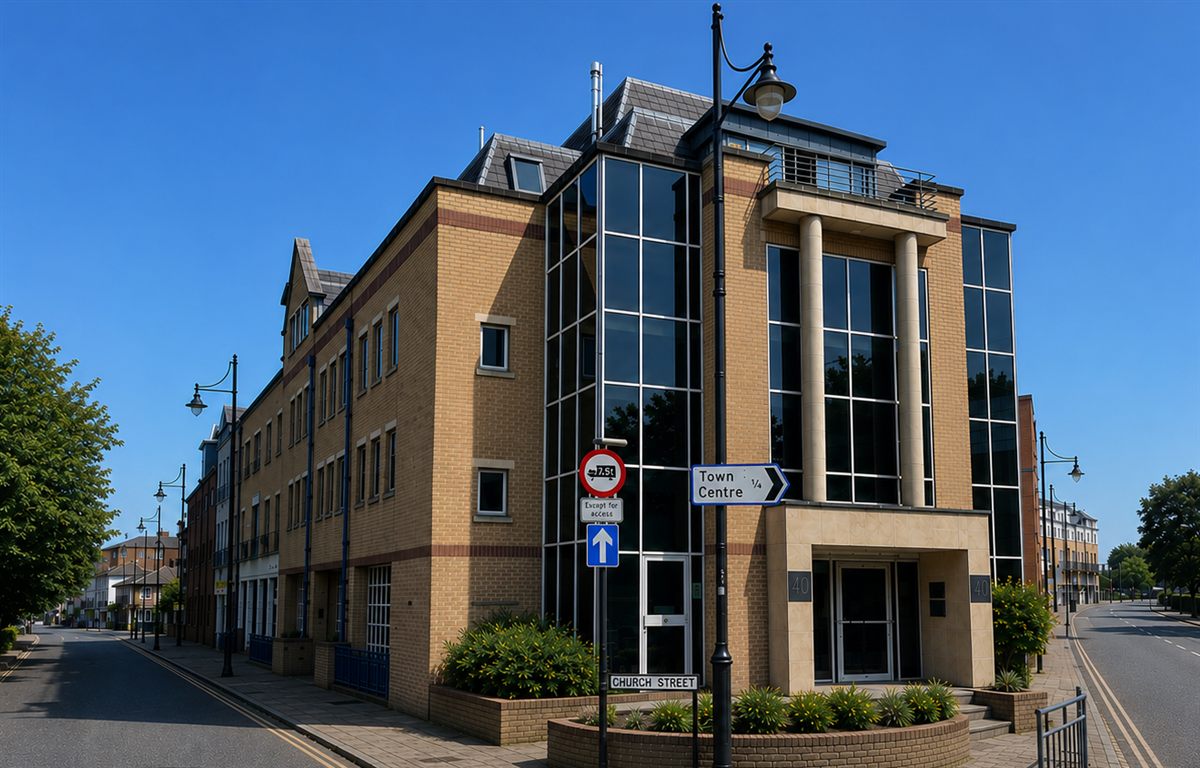

SENSOR DETECTION HQ · NEAR LONDON HEATHROW
Multi disciplined engineering team – Concept to production
- Hardware — electronics and systems design
- Firmware — distributed intelligence and condition monitoring
- Software — application-focused integration and diagnostics
- Production — mechanical assembly and automated testing
Sensor solutions - engineered to meet your system requirements
Sensor Detection works as an extension of your engineering team — one partner that designs the sensor, electronics and firmware. Every product is built to the requirements of your application, backed by more than 100 combined years of sensor engineering.
Compliance by design
Compliant parts chosen at the design stage
Every part on a bill of materials is selected by our own engineers and bought through franchised or manufacturer-approved channels, so its compliance record exists before the product or parts are built.
- Supplier RoHS, REACH and CMRT declarations collected per part and held against the bill of materials
- Sourced exclusively through franchised distribution or manufacturer-approved suppliers
- Declarations of Conformity issued per product on request
- Compliance data held in our own ERP, tied to live manufacturing records
Manufacturing quality - independently certified
Zero-defect manufacturing philosophy
Defects are designed out rather than caught at the end — and every product is still 100% tested before it ships, with stock and sub-assembly managed to the same standard throughout.
- Full product data pack change control
- Stock management in our own ERP — built for our requirements
- Long-standing supplier partnerships with component traceability
- Automated test at board and sub-assembly level, all in the UK
- Production staff trained and measured to the same standard
ISO 14001
ISO 27001
Tell us about the system you're building
Whether it's a custom TDI/2D package or a question about connector selection — talk directly to the engineers who will design it.
